Versatile Kids EEG

Elettroencefalogramma pediatrico senza gel né preparazione. Solo acqua e pronto per la ricerca.

Cuffia EEG wireless senza gel con 16 o 32 canali, progettata per la ricerca pediatrica in contesti reali. Comoda per i bambini, pratica per i ricercatori.

Componenti principali

Cappuccio EEG

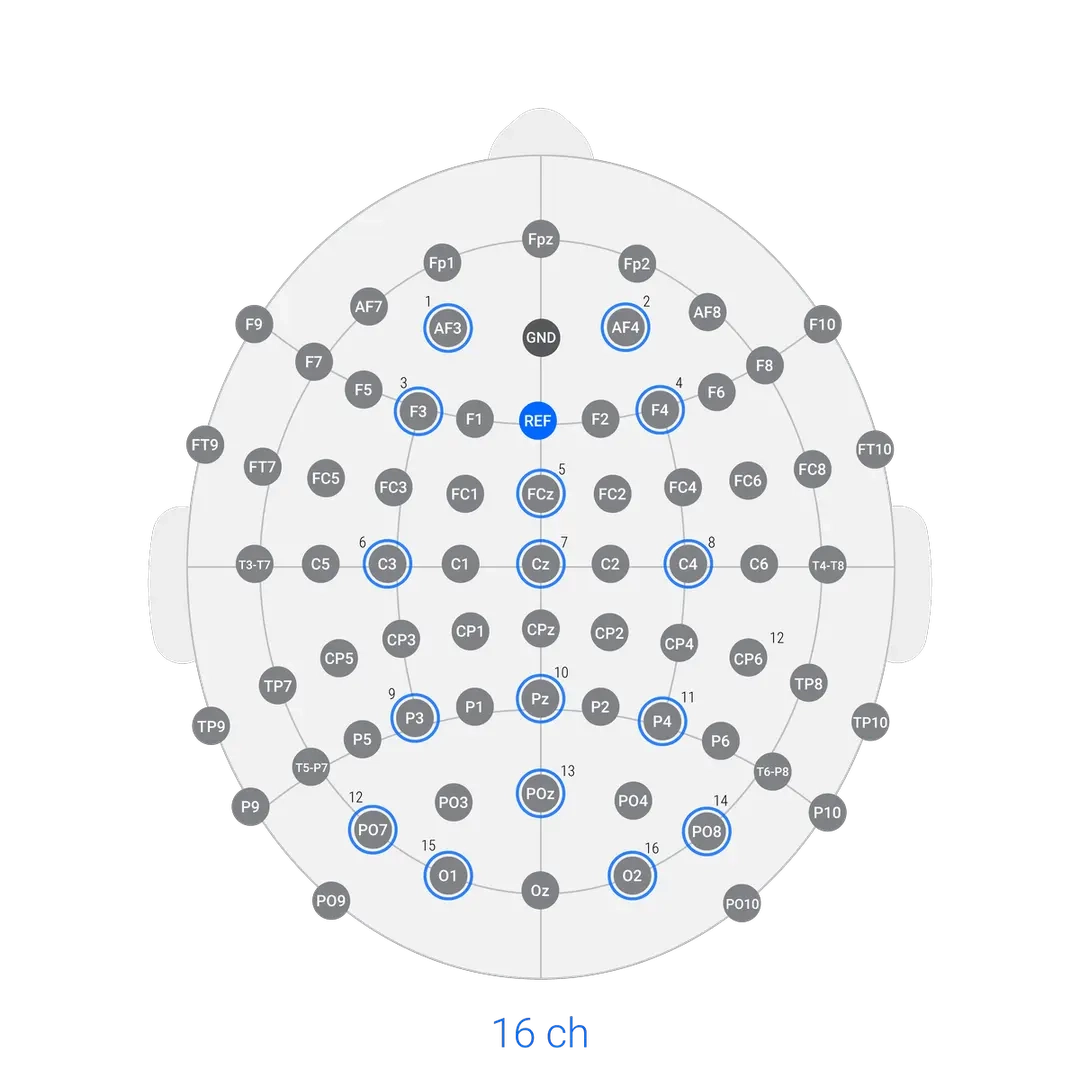

Cuffia per EEG disponibile in diverse taglie pediatriche per neonati e bambini, che garantisce vestibilità e qualità del segnale, con posizionamento flessibile del sensore secondo i sistemi 10-20 e 10-10.

Cappellino per bambini

Una copertura a prova di bambino che protegge i sensori e rende il sistema più accessibile e adatto ai più piccoli.

Amplificatore EEG

Amplificatore leggero con rilevamento del movimento integrato, trasmissione Bluetooth e memoria di backup su scheda microSD per una registrazione dati affidabile.

Specifiche tecniche

Hardware

Sensors and Headset

	16 canali	32 canali
EEG Channels	16 x EEG, RIF + GND	32 x EEG, RIF + GND

Type of sensors	Water-based sensors, active shielding and optimized DRL
Head perimeter	420-660 mm (Cap sizes S, S/M, M, M/L, L, XL)

Wireless Amplifier

16 canali

32 canali

Sampling rate / Resolution	256 SPS at 24 bits
Bandwidth	DC-70 Hz (3rd-order LPF)
Real-time check impedance	Yes (relative contact impedance)
Integrated sensors	Integrated IMU (9 axis): Accelerometer, gyroscope and magnetometer

Other inputs

1x Digital Input (1bit), 1x Optical Trigger (photodiode)

1x Optical Trigger, 1x Digital Input, 2x Bipolar ExG

Input range and noise	±100 mV, <1 µV RMS (0.5–30 Hz@256 Hz); ±400 mV, <4 µV RMS (0.5–30 Hz@256 Hz) (Bipolar ExG)
CMRR / Input impedance	>100 dB@50 Hz; >50 GΩ

Dimensions

78 x 72 x 32 mm

107 x 74 x 32 mm

Weight

125 g

165 g

Data Streaming and Storage

16 canali

32 canali

Data transmission and range	Bluetooth 2.1 + EDR with 10 meters in direct sight
Data files	CSV, EDF
Data backup	Yes (removable microSD card, up to 8 GB, Class ≥ 10)

Power

16 canali

32 canali

Battery	Rechargeable LiPo battery; charging time < 3 h
Autonomy	> 8 h
Nominal / Rated Voltage	3.7 V
Nominal / Rated Power	450 mW
Charging	Barrel plug

General

Warranty	2 years
Certifications	CE (Directive 2014/53)

Software

Bitbrain Core Research Software (included with equipment)

SennsLite	Real-time visualization, data recording, and synchronization across all Bitbrain devices. Compatible with LabStreamingLayer (LSL) for third-party real-time I/O (BCI2000, OpenVibe, NeuroPype, Medusa). Data export in CSV and EDF, compatible with common analysis softwares: Python (MNE, etc), Matlab (EEGLAB, FieldTrip, BCILAB,etc), and more.
C SDK	SDK in C for maximum performance and portability enabling Python integration. Compatible with Windows OS and Linux (x86).

Bitbrain Extended Research Tools (licensed)

SennsLab

Synchronization software for experimental design and data collection, supporting 35+ seamlessly synchronized sensor modalities including EEG, eye-tracking, and other biosignals. Compatible with third-party softwares via TCP/IP protocol. Data export in CSV.
