Ikon Sleep

Elettroencefalogramma (EEG) progettato per il sonno. Inciso per la ricerca.

Elettroencefalogramma del sonno con 2 sensori frontali pre-gelificati e PPG integrato per il monitoraggio dell’attività cerebrale e cardiaca. Unisce facilità d’uso e comfort. Progettato secondo gli standard medici per una ricerca affidabile sul sonno, sempre e ovunque, da chiunque.

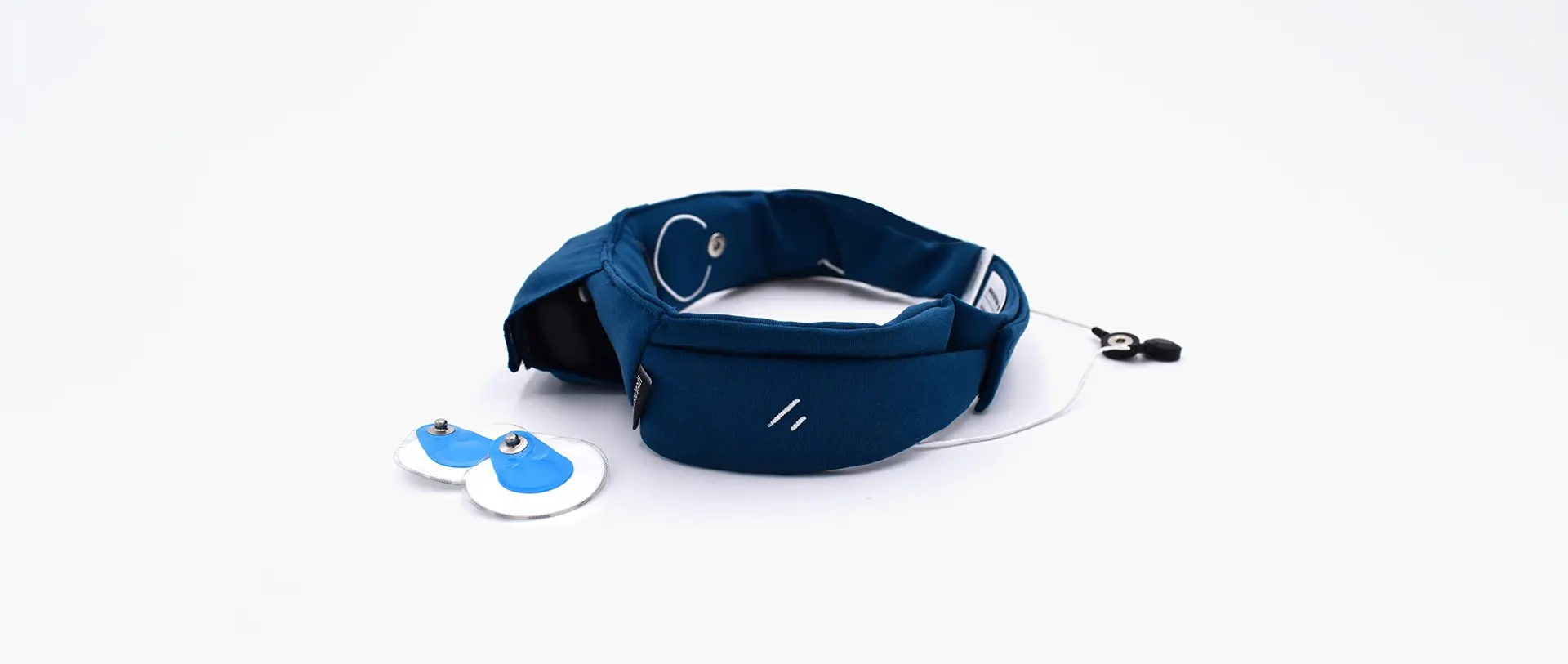

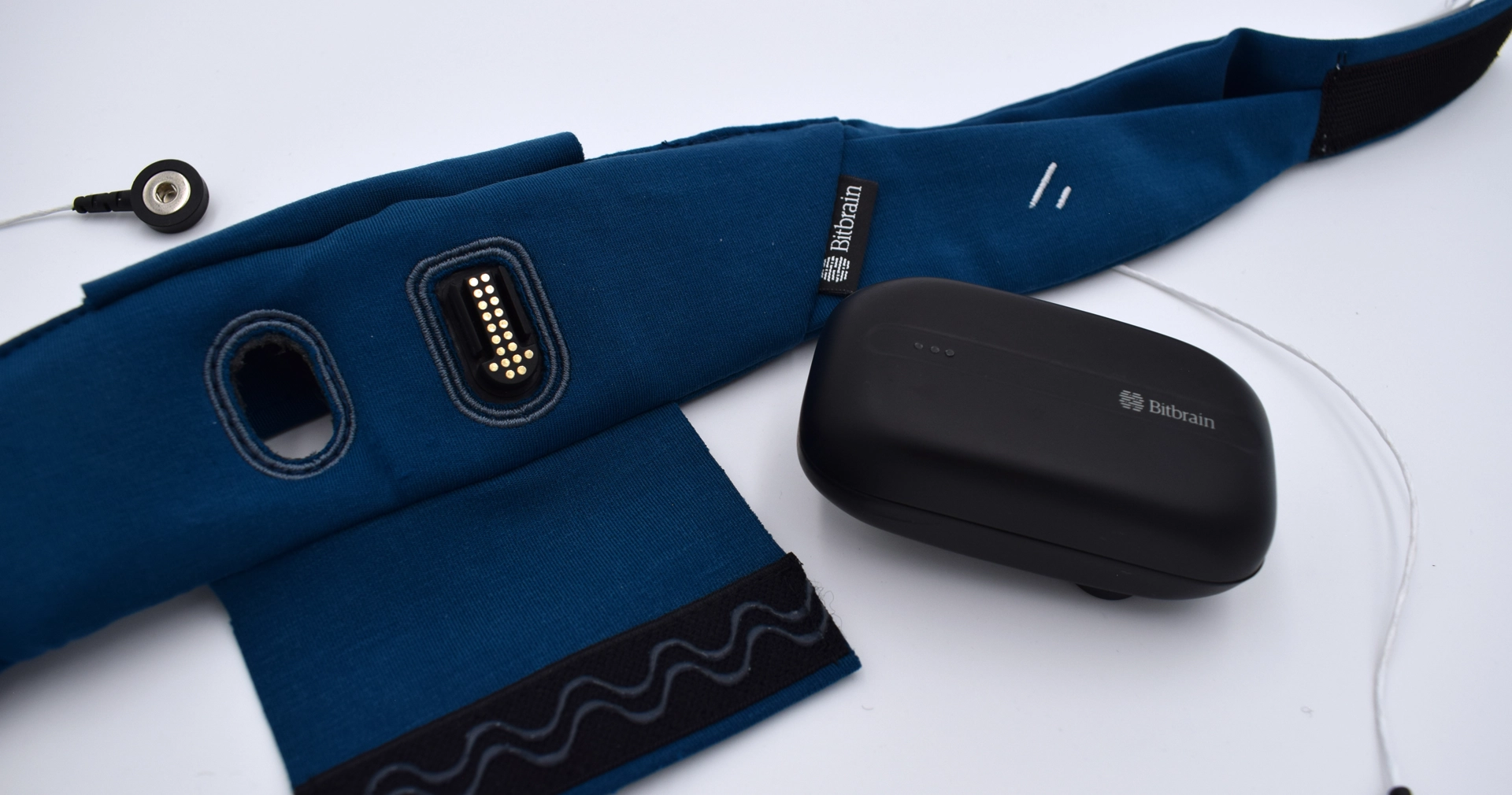

Componenti principali

Braccialetto per dormire Ikon

Ikon Sleep garantisce comfort durante tutto il sonno, registrando al contempo un EEG di alta qualità. Riduce al minimo gli artefatti e migliora il rapporto segnale/rumore (SNR) grazie alla schermatura attiva e alla tecnologia DRL ottimizzata.

Amplificatore EEG

Amplificatore EEG leggero con PPG, tracciamento del movimento, trasmissione wireless BLE e memorizzazione dati interna per registrazioni affidabili e flessibili.

Specifiche tecniche

Hardware

Sensors and Headset

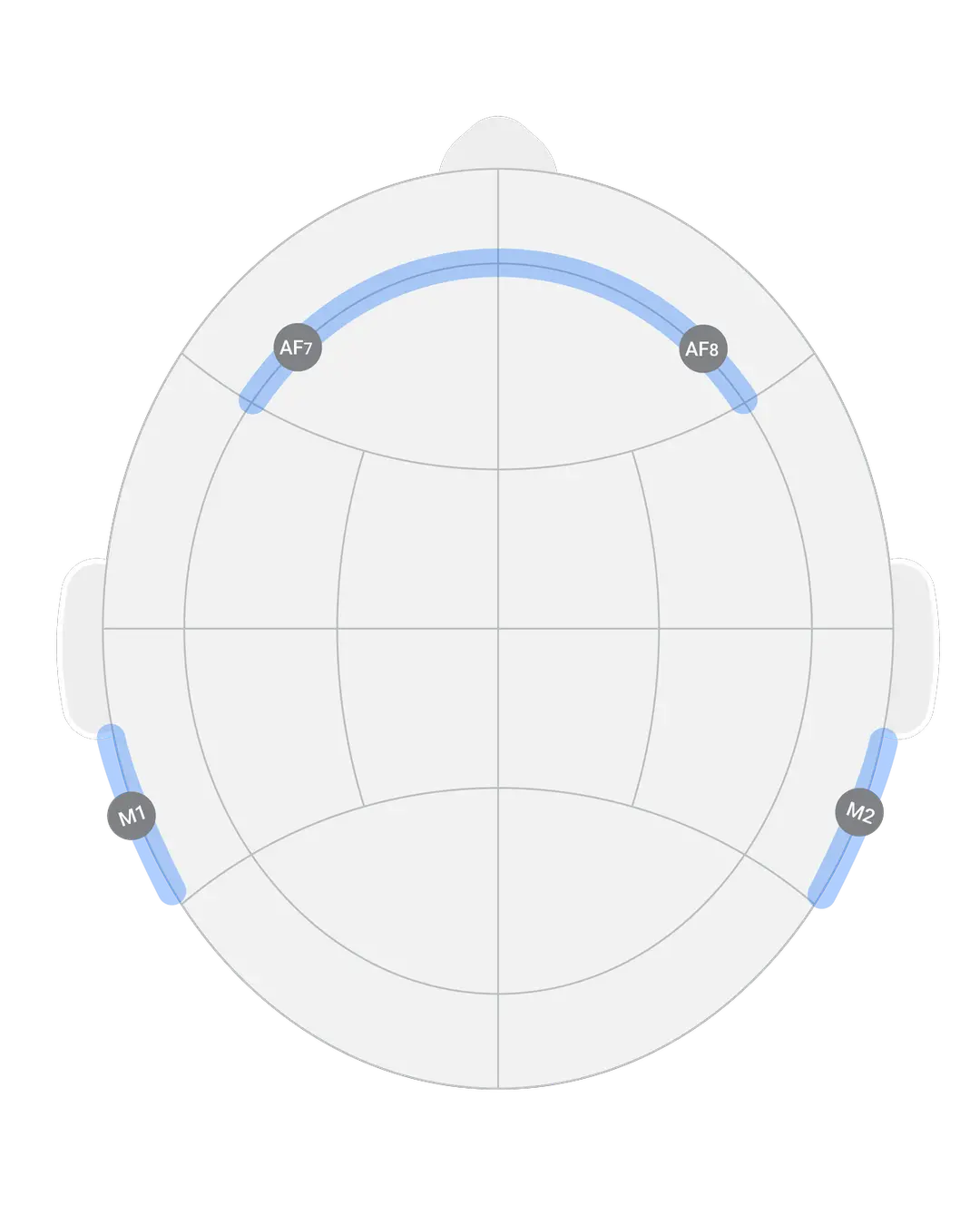

EEG Channels	2x EEG (AF7 e AF8) + GND (M2) + REF (M1)
Type of sensors / electronics	Pre-gelled snap-on sensors
Head perimeter	520-700 mm

Wireless Amplifier

Sampling rate/resolution	256 SPS at 24 bits
Bandwidth	DC–40 Hz (3rd-order LPF)
Online/real-time impedance check	Yes
Integrated sensors	PPG + Integrated IMU (9 axis): Accelerometer, gyroscope and magnetometer
Input range and noise	±100 mV; <1 µV RMS (0.5-30 Hz@256 Hz)
CMRR/Input impedance	>100 dB@50 Hz; >50 GΩ
Maximum related band power per band	4 dbm
Dimensions	79 x 42 x 35 mm
Weight	65 g

Data Streaming and Storage

Data transmission and range	Bluetooth Low Energy 5.0 2,4 GHz + EDR with 10 meters in direct sight
Data files	CSV, EDF
Data backup	Internal SD card (16 GB)

Power

Battery	Rechargeable LiPo battery; charging time < 3 h
Autonomy	> 9 h
Nominal / Rated Voltage	3.7 V
Nominal / Rated Power	360 mW
Battery Life Span	500 cycles > 80%
Charging	USB type C

General

Hardware version of the amplifier	V13
Firmware	Upgradable via web
Working Temperature	0 ºC ~ +25 ºC
Warranty	2 years (amplifier)
Certifications	CE (Directive 2014/53) and FCC (part 15)

Software

Bitbrain Core Research Software (included with equipment)

SennsLite	Real-time visualization, data recording, and synchronization across all Bitbrain devices. Compatible with LabStreamingLayer (LSL) for third-party real-time I/O (BCI2000, OpenVibe, NeuroPype, Medusa). Data export in CSV and EDF, compatible with common analysis softwares: Python (MNE, etc), Matlab (EEGLAB, FieldTrip, BCILAB,etc), and more.
C SDK	SDK in C for maximum performance and portability enabling Python integration. Compatible with Windows OS and Linux (x86).
Ikon App	User-friendly recording application designed for remote data collection outside the lab. Available for Windows (Android coming soon), it features an intuitive interface that enables non-technical users to record and save sessions autonomously.
